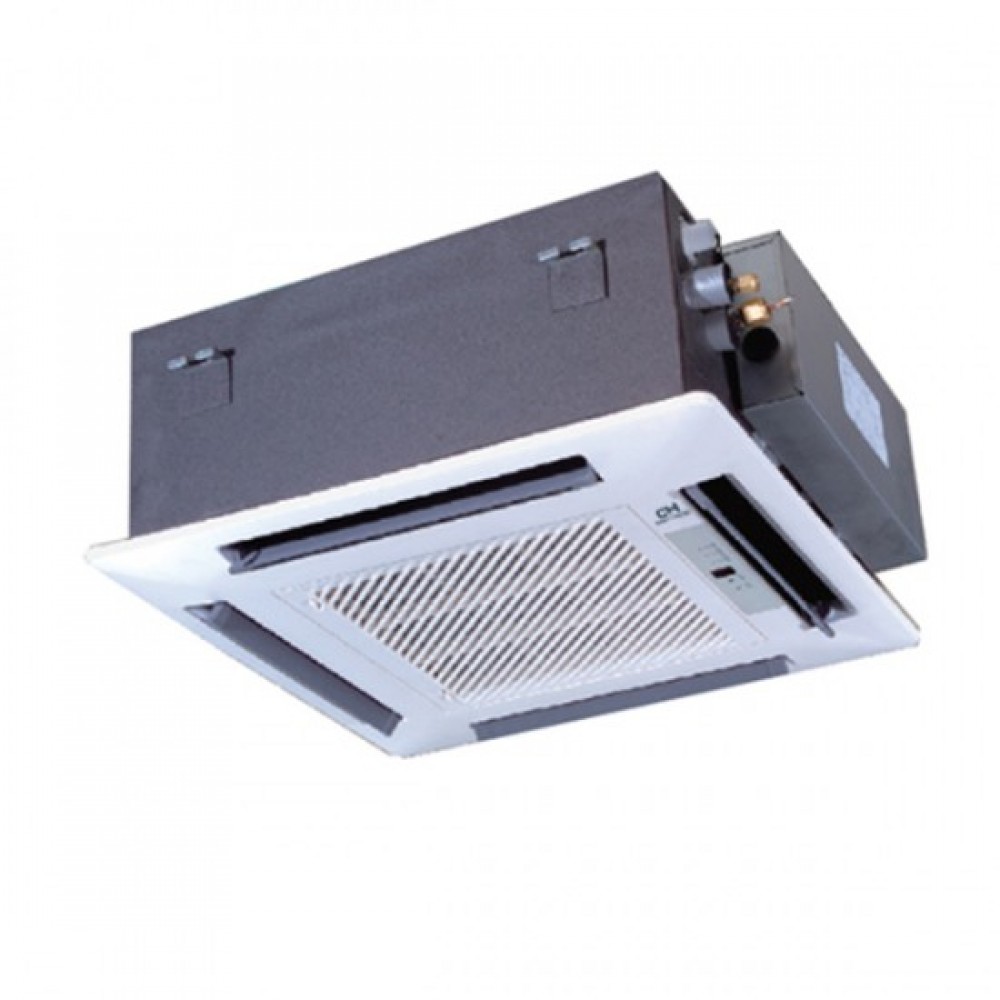

Nordic CH-IC24NK4 set binnenunit en buitenunit 7,0kW 240m3

Capacity/Cold : 7,0 kW
Capacity/Warm : 8,0 kW
Power supply : ~ 220-240V/50Hz/1Ph
Rated input/Cold : 2,18 kW
Rated input/Warm : 2,21 kW
Current rate/Cold : 10,1 A
Current rate/Warm : 10,2 A
Energy efficiency/EER (Cold) : 3,21 kW/kW
Energy efficiency/C.O.P. (Warm) : 3,61 kW/kW
Air capacity : 1300 m³/h
Sound-pressure level/indoor unit : 47/46/42/38 dB(А)
Sound-pressure level/outdoor unit : 57 dB(А)
Type of refrigerant coolant : R410А
Refrigerant coolant type : 2.2 kg
Dimensions (width/height/depth)/indoor unit : 840х840х240 mm
Panel of indoor unit : 950х950х60 mm
Dimensions (width/height/depth)/outdoor unit : 980х427х790 mm
Weight/indoor unit : 26 kg
Weight/outdoor unit : 67 kg
Operational temperature range/Cold : -15...+48 °C
Operational temperature range/Warm : -20...+24 °C
Fluid pipeline diameter : 9.53/3/8" mm/inch
Gas pipeline diameter : 15.88/5/8" mm/inch
Maximum pipeline level difference : 15 m
Maximum pipeline length : 30 m
Number of the interblock strands (for control) : 2*0.75 – up to 20 m
Main power supply area : Outdoor
Number of strands (power supply)/indoor unit : 3(ø1.0 mm)
Number of strands (power supply)/outdoor unit : 3(ø2.5 mm)
Factory freon fill (for the number of running meters) : 5 r.m.
Quantity of freon per one running meter (surplus. for one running meter) : 60 gramm/r.m.
SEER : 6.1
SCOP : 4.0
