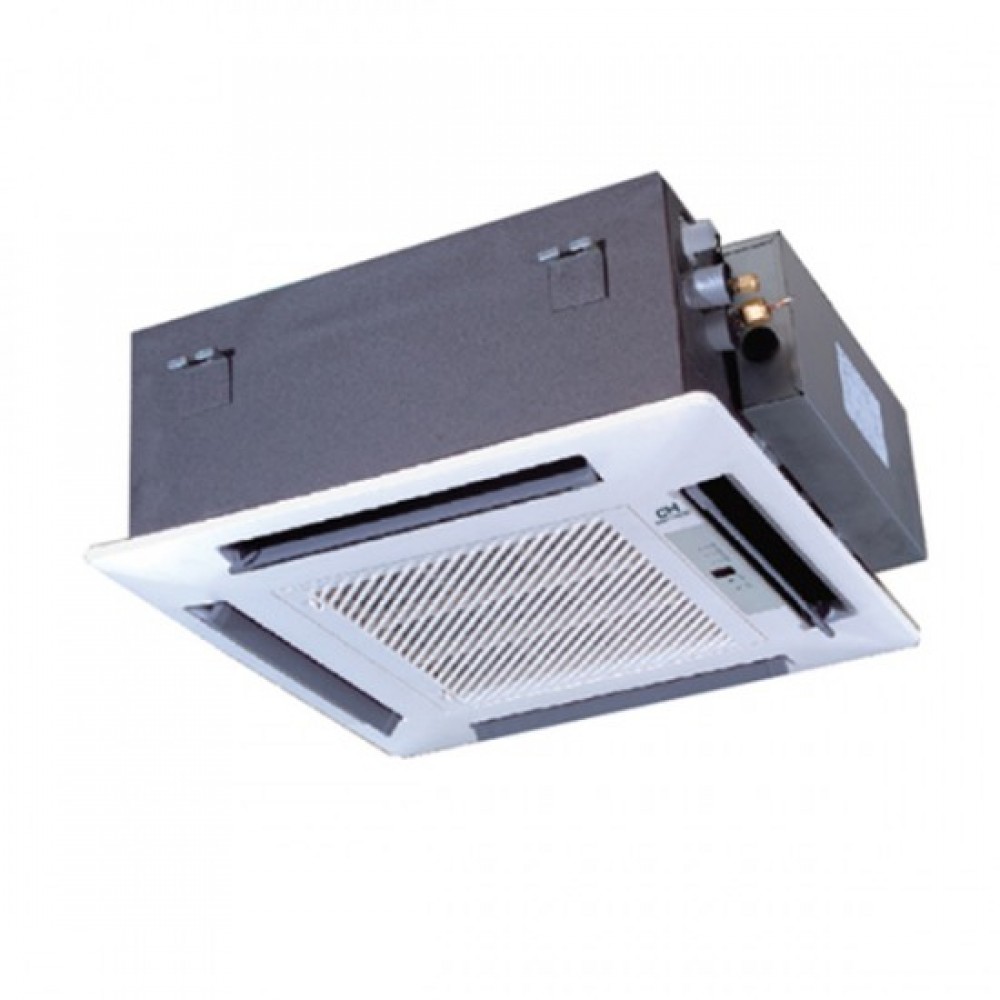

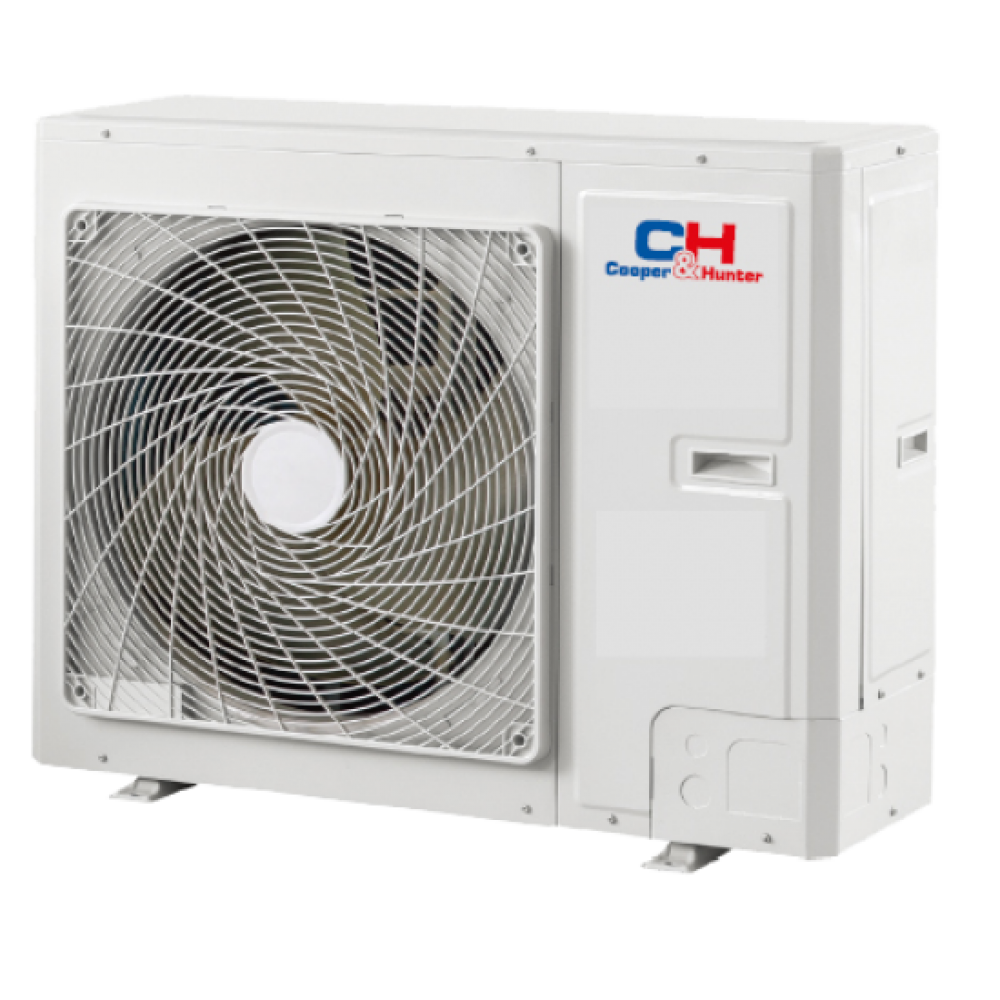

Nordic CH-IC12NK4 set binnenunit en buitenunit 3,5kW 120m3

Plafondunits
4 zijdige uitblaas

Aantal:
+
Totaal prijs 1.500,00
  • Direct uit voorraad leverbaar
  • Service & Onderhoud mogelijk
  • Montage op locatie mogelijk
  • Zeer ruim aanbod
  • Beschrijving
  • Specificaties

Beschrijving

Specificaties

Capacity/Cold : 3,5 kW
Capacity/Warm : 3,8 kW
Power supply : ~ 220-240V/50Hz/1Ph
Rated input/Cold : 1,09 kW
Rated input/Warm : 1,05 kW
Current rate/Cold : 5 A
Current rate/Warm : 4,9 A
Energy efficiency/EER (Cold) : 3,21 kW/kW
Energy efficiency/C.O.P. (Warm) : 3,61 kW/kW
Air capacity : 700 m³/h
Sound-pressure level/indoor unit : 46/45/41/36 dB(А)
Sound-pressure level/outdoor unit : 52 dB(А)
Type of refrigerant coolant : R410А
Refrigerant coolant type : 1.2 kg
Dimensions (width/height/depth)/indoor unit : 596х596х240 mm
Panel of indoor unit : 670х670х50 mm
Dimensions (width/height/depth)/outdoor unit : 848х320х540 mm
Weight/indoor unit : 20 kg
Weight/outdoor unit : 34 kg
Operational temperature range/Cold : -15...+48 °C
Operational temperature range/Warm : -20...+24 °C
Fluid pipeline diameter : 6.35/1/4" mm/inch
Gas pipeline diameter : 9.53/3/8" mm/inch
Maximum pipeline level difference : 15 m
Maximum pipeline length : 20 m
Number of the interblock strands (for control) : 2*0.75 – up to 20 m
Main power supply area : Outdoor
Number of strands (power supply)/indoor unit : 3(ø1.0 mm)
Number of strands (power supply)/outdoor unit : 3(ø1.5 mm)
Factory freon fill (for the number of running meters) : 5 r.m.
Quantity of freon per one running meter (surplus. for one running meter) : 30 gramm/r.m.
SEER : 5.6
SCOP : 4.0
